Princess Pat Mine Afterglow

Afterglow demonstration from the Princess Pat Mine collecting area in San Bernardino County, California. This characteristic is extremely difficult to capture on video. In person the effect lasts for nearly a minute. I’ve run the video at half speed at a certain point to simulate what this looks like. The text announcing this point goes by quickly.

This is short wave under an 18 watt Way Too Cool Lamp. The mineral is willemite, the parent rock undetermined at this time.

November 12, 2019 update: If you look at this video on a big screen TV (Search YouTube for “Thomas Farley Channel” you’ll see the afterglow much better represented. I cut the video off during editing at the point my computer monitor showed no more glow. On a big screen, the glow still has a way to go. I will reshoot and you can then see the results on a TV.

Princess Pat Mine Afterglow from Thomas Farley on Vimeo.


November 13, 2019 update: Here’s the reshot video.

Princess Pat Mine Revised from Thomas Farley on Vimeo.

How long do you see afterglow continuing? On my unadjusted monitors, blackness comes in at twenty seconds, on my standard def TV blackness comes in at around 23 seconds.

I will be adjusting my monitors and possibly my TV to see if I can view the afterglow longer. This site has been recommend for adjusting displays:

http://www.lagom.nl/lcd-test/black.php

That website is difficult to use. My iMac has a native calibration setup process that does not push the length.

In full screen mode using the original HD file, the last spot I see on my iMac is at 25 seconds. Even though I shot this in HD, 3840 x 2160, compression is going on at Vimeo where I uploaded it originally and then published it through Vimeo to YouTube. And I scaled it to 1920*1080 before uploading.




The Princess Pat Mine collecting site is described at this website by Justin Zzyzx who who has written Rockhound Barstow, the best and most current field guide to California’s Mojave.

http://wheretofindrocks.com/finding-princess-pat-mine-lighting-shadow-mountain-california/

This specimen was a kind gift from a friend.

—-

Follow me on Instagram: tgfarley

https://www.instagram.com/tgfarley/

My Best and Worst Find of The Day

November 12, 2019 Update: The Right People are on it! Cleanup scheduled soon.


Toxic waste dump in a culvert underneath the frontage road to 7 Magic Mountains and Jean, Nevada. I have reported it to Clark County and will follow up. I want to make sure this leaking, awful mess of used oil and possibly diesel waste is taken care of before it further contaminates the desert wash this culvert leads to.

Badly leaking oil mess.

—-

Follow me on Instagram: tgfarley

https://www.instagram.com/tgfarley/

The Gold Lady in Golden Valley, Arizona

Located now in Golden Valley, The Gold Lady is a great prospecting and metal detecting store. The Gold Lady knows her stuff and she is an unstoppable when it comes to her own detecting; she is constantly in the field and mightily protests when health prevents her from going out.

The old store was fine but this new location promises good things. The Gold Lady has been advocating the Minelab Gold Monster 1000 for some time. Although I only saw it work at her old shop, its operation looks simple with a fairly flat learning curve. It looks like a great choice for the beginning prospector. Prospecting supplies and perhaps local maps.

The Gold Lady
52 Hope Road, Suite 2
Golden Valley, AZ 86413 (Northwest of Kingman)
928-692-5035

35°13.168′ N 114°10.443′ W

Google Map link:

https://goo.gl/maps/zEhWvpgeJ9Bhq68NA

http://thegoldladystore.com

My last writeup:

The Gold Lady (internal link)

My travel list:

https://southwestrockhounding.com/sw-travel-list/

—-

Follow me on Instagram: tgfarley

https://www.instagram.com/tgfarley/

When Trouble Hits Off-Road or Off Trail

Group Travel

The benefits of caravanning or driving with a group fall apart if one is left behind. A trip leader may feel pressure to keep a group going to its destination, even if a member breaks down. That driver must then fix the problem themselves, if they can, and then navigate back to pavement. Or, they must get help from the outside. This leads into a discussion about vehicle recovery, communications, and personal survival.

First Things First

Traveling in a caravan off-road is often a high speed race into the wilderness. The group leader, familiar with the road, may blaze ahead with the group struggling to keep up. In so doing, it is nearly impossible to keep track of every turn and fork in the road, especially if one is driving solo. That’s a problem. A real problem. Because if you have to turn back without the group, you may not be able to find your way back. You are guided in, can you guide yourself out?

At the very least try to set a waypoint when you leave pavement. I take a photo with my Garmin Montana 650 handheld. It assigns a GPS coordinate to each photo it takes, eliminating manual entry of waypoints. I can later call up the photo and the Garmin will ask if I want to navigate back to that point. Taking more photos along the way at each fork and bend is impossible for me while driving but I will at least have one point I can dead reckon back to.

Communications

With A Cell Phone

Communicating with a road service is no problem if cell phone coverage exists. Even when connected, however, a traditional group like AAA may refuse to dispatch a tow truck down an unmaintained BLM or USFS road. If you are in the Jeep community, a Jeep club member, you will probably have friends and contacts that will come from incredible distances to help. For the rest of us, an off-road recovery service plan is needed, along with a way to get in touch with that towing company without cell phone coverage. A good solution is a satellite messaging device paired with an off-road vehicle recovery plan.

Without a Cell Phone

— Satellite Text Messaging Devices

The SpotX is a satellite text messaging device (internal link). It requires a subscription along with buying the device. Options are personal recovery services and vehicle recovery services. Spot X competes with Garmin inReach products.

SpotX provides personal recovery through GEOS, a worldwide group that facilitates search and rescue. With the GEOS option subscribed to, a rockhound can summon help through the SpotX by simply pushing the device’s dedicated SOS button. GPS coordinates are automatically sent with any SOS message.

This service is keyed to the subscriber but is unthinkable an emergency team would refuse aid to anyone in a life-threatening situation. That person, though, will probably have to pay the cost of this uncovered rescue. GEOS stand-alone plans are available for individuals, no device needed. Many backpackers use GEOS while wilderness traveling. Garmin’s inReach products also offer GEOS.

A vehicle option is the S.O.V. or Save Our Vehicle service. This summons a company called Nation Safe Drivers to recover or make road worthy any broken down or bogged vehicle. That includes SUVs, ATVs, or motorcycles. Unlike AAA, this service is tied to a particular vehicle. Nation Safe promises that their partners will recover a vehicle on any kind of road regardless of location. That said, towing services are far and few between in the rural southwest and a rockhound should be prepared to wait a very long time for recovery.

Search and Rescue teams are frequently summoned to help people stranded in the wilderness due to vehicle breakdowns. This is a terrible use of trained, needed people. A rockhound or prospector should have a vehicle recovery plan, use that, and only if no assistance is available, then ask SAR for help.

This writer has both SpotX options and has had the good luck not to need them. Yet.

The SpotX is challenging to set up. The device requires a Mac or Windows desktop or laptop machine to first configure the device and then for later updates and changes. You can’t use a mobile OS to set up the SpotX but a phone app provides some features after the device has been configured with a non-mobile OS.

Download the SpotX program, enter the required information, sync the SpotX to a desktop or a laptop over a cable. When updating the device, download the latest updater program first, run that, and then again sync the device over cable. Check for updates before going into the field as the device may not work without the latest software.

The SpotX operates best when stationary and with a clear view of the sky. Run several test messages before going out. Text messages are delivered more quickly and more dependably than e-mail messages. Coordinates can be sent with every message. The keyboard is frustrating to use with its tiny keys. Really frustrating.

–A Satellite Phone

Satellite phones provide direct voice communications. One still needs a personal and vehicle recovery plan, of course, after connecting to the terrestrial telephone network. Sat phones themselves are reasonably priced but air time is phenomenally expensive. They can be rented for short periods but air time will still cost dearly.

–Amateur Radio

Ham radio is excellent for emergencies when other services fail. Coverage is likely over much of the Southwest with what are called repeaters, small radio stations that are on the tops of the most remote and unlikely mountains and even on the roofs of casinos. Emergency traffic is relayed between a ham with a telephone connection and a person in the field seeking help. If a repeater has an accessible autopatch feature then things proceed more smoothly.

Ideally, the caller initiating the emergency call must have an amateur radio license, obtained by passing an FCC test. In reality, anyone in a life or death situation will be listened to, in fact, most of the nearby ham community will likely tune in when another ham declares an emergency. All other traffic will then get voluntarilly suspended from the particular channel being used. A Technician class license takes 15 to 20 hours of study to prepare. All manner of people and resources will assist a future ham with passing. I hold a General Class license, my call sign is KD6NSP.

–FRS/GMRS

The Family Radio Service or FRS is normally used to communicate between vehicles or between people on a hike. A walled garden system, FRS cannot be depended on to communicate with the outside world. GMRS or General Mobile Radio Service transmits further and, in some areas, employs a network of repeaters to get messages through. GMRS requires an FCC license but no testing. Of the two, GMRS offers the best chance for getting help.

–Citizen’s Band Radio

C.B. is still with us although less so. On a hill or in open country, a five-watt C.B. radio signal can travel a fair distance. Channel 9 is supposed to be used in emergencies, although Channel 19 has the most traffic. C.B. allows a chance of communicating with the outside world. Find a C.B. shop near truck stops or travel plazas to professionally install a unit. Installers can tweak a radio for better performance if asked discretely. Handhelds are nearly worthless. A vehicle mounted C.B. radio is not that expensive, except for so called SSB units which are very desireable. As with everything radio, the magic is in the antenna.

First aid

Pre-made first aid kits come in many styles which all need modifying. Every kit lacks an inadequate number and variety of bandages. Bring more, big ones. Cuts in the field are much worse than those in the city. A bigger bandage can be cut to size by sharp, sturdy scissors that must be in every kit. Canvas backed bandages stick, plastic doesn’t. Secure plastic bandages with tape if nothing else is available.

Mandatory bandages are knuckle bandages and wound closure strips. Knuckle bandages look like an “H”, with four finger-like strips extending from a central square. They conform to nearly every cut and can be bought at all well stocked pharmacies. Purchase knuckle bandages for home, the truck, the field. Buy bandages in quantity as they need frequent changing. Consider partially unwrapping bandages before a trip. Especially with a finger cut, opening a bandage package and removing the backing is extremely difficult while bleeding.

Wound closure strips are essential. These are called butterfly closures or steri-strips. These bandages, a series of fabric tabs, attempt to bring the two sides of a shallow wound together. Normal bandages, by comparison, simply cover a wound. Any injury requiring butterfly closures should be looked at as soon as possible by a medical professional.

Bandage tape is essential, the better to keep a big bandage secure after applying it over a wound. Such tape can wrap toes prone to blistering before hiking. Bring nail clippers or scissors to trim toe nails which can bother or go bloody on a long downhill.

Sore or blistering feet must be addressed immediately, even when a large group wants to move on. A sock change may eliminate a hot spot, in other cases baby powder may help. If a hot spot does develop, cover it with a bandage or mole skin, even duct tape if nothing else. Too often a newcomer lets a foot problem get serious, not wanting to slow their fellow travelers. The result, further injury, bloody socks, discouragement and perhaps impairment.

Antiseptic swabs are good as well as a hemostat, a lightweight surgical plier. These or conventional needle-nose pliers help pull out thorns. A snakebite kit is of dubious merit, especially the old-fashioned ones that require self-surgery. Noted herpetologist W.C. Fields advised people to always carry a flagon of whiskey in case of snakebite. And to always carry a small snake.

Most importantly, carry all items in a waterproof case or at the very least in double wrapped Zip-Lock bags. Water always finds a first aid kit. Always. Kayakers and rafters use waterproof cases and these are good. Throw a few matchbooks in any first aid kit. Someone will need them.

Some of my kit

Survival at a vehicle is usually assured provided adequate water and food exists. As they should since the rockhound went out for the day or overnight to collect. Less assured is the situation when the rockhound is away from the vehicle and disoriented. Desert washes confuse easily as they meander back and forth, don’t look the same going as they did coming, and provide no elevation to get one’s bearings. Heavily wooded areas confuse with a lack of landmarks and spotty GPS coverage.

Let’s discuss being lost.

Self-Recovery And Survival

Summoning aid over radio was discussed under Communications Section. Navigating with GPS devices and by hardcopy maps were discussed under the Map and GPS Essentials Chapter.

We assume here that the rockhound is unable find a way back to the vehicle. A GPS device has failed, a hardcopy map has gone missing, water is running low, night is approaching. If separated from a group, use a whistle to blow three times in a row. Do this often.

If there is a group, a fellow member will be known as lost rather quickly. People will often wait at their vehicles overnight for a hiker to appear before calling in search and rescue. They will repeatedly honk every vehicle’s horn. Listen for that. Know that people are waiting and that more are coming.

If there is no group, at least a vehicle is on a road. Correct? Unless no one was notified of the prospectors’ trip, a bad thing indeed, search and rescue will be gathering soon. Within a full day, certainly two, probably assembling at the vehicle. A vehicle is far easier to find than a person and that is what they will locate first.

Settle in for an uncomfortable night of little sleep. Fight panic. The situation is not out of control. A rockhound is still within walking distance of a vehicle, perhaps not too far, as most of us carry heavy tools or rocks. Night travel needs thought. One misstep may produce a twisted ankle, pain, incapacity. Cactus are everywhere in the desert, as well as mesquite, which will savagely wound on a brush-by. Save energy for the next day. Hang on.

With dawn, try to get oriented again. Look at the sun and the mountains; try to picture where the vehicle is. If totally confused, it may be best to stay in place, rather than flounder through brush and cactus or go further down a wash or canyon. If one decides to move, leave a litter trail behind and start breaking branches now and then, giving the SAR team clues.

If in the mountains, never loose elevation unnecessarily. In theory, a mountain stream will eventually lead one back to more level ground and then recovery. In reality, many streams are absolutely choked with vegetation, making even walking downhill difficult as one thrashes through brush and over large, uneven boulders.

It is a new, unsettling and distressing experience to be lost and without water. More effort creates a desire for water one doesn’t have. Another argument for staying in place. People will be coming. Some SAR groups have aircraft support. Make a signal for them. Seek any shade. Sit. Think on better times.

Not Getting Lost

1. Carry a good map and know how to use it. An old-fashioned compass is lightweight, takes up little room in a pack and almost always works. They are best used with a hardcopy map to get oriented to one’s surroundings. Navigating by compass alone means taking a bearing at the trailhead and that takes instruction and practice. Without setting a bearing, the compass may turn useless when trying to return.

2. Take a GPS device when walking a good distance from a vehicle. Record way points from leaving the vehicle on. Handhelds like the Garmin Montana enable breadcrumbing, allowing the retracing of a path. For GPS units with cameras, a set of photographs will provide a set of effortlessly recorded waypoints. These devices create actionable photographs, assigning coordinates to each image, allowing navigating to any photographed location by simply pressing “Go.”

3. Note prominent landmarks while prospecting, especially power lines, fences, and other man-made objects. A trail never looks the same going in as coming back. Look backwards from time to time. If you get uneasy about navigating back, claw an arrow in the dirt with your boot at trail junctions. Or set a group of rocks at a fork to indicate the way back. In densely wooded areas of the California foothills, I have tied yellow survey tape from Home Depot to trees and shrubs every few hundred yards to lead back to a trailhead. It is easily removed upon return.

4. Carry more water. Food is important but water more so. Lack of water directly impacts strength. More water.

5. Think about a survival plan before any upcoming trip.

6. Remember that whistle. Blow three times in a row each time. A good whistle is heard from a decent distance.

6. As common sense dictates, always tell someone about any off-pavement plans. Provide a trip leader’s telephone number to your friend as well.

—-

Follow me on Instagram: tgfarley

https://www.instagram.com/tgfarley/

Classifiers or Screens

Simple look at basic screens or classifiers. Uniform material makes for the best panning. Deciding how far down to screen depends on your patience and the size of the gold you are recovering. Probably small. I’ll try to put together a video that shows wet classifying, running coarse material down to fine.

In this video you’ll see regular screens and deep ones. Deep ones allow you to overfill a five gallon bucket just enough to work your material wet. They’re not meant to process more material, you really only want a screen a third full at the most when classifying.

Common Classifiers or Screens from Thomas Farley on Vimeo.

—-

Follow me on Instagram: tgfarley

https://www.instagram.com/tgfarley/

Traveling Off-Road In The Southwest

Vehicle Tips

An Introduction

None of this post involves rock crawling. That is for well modified vehicles and their drivers who anticipate and plan for equipment and body damage. Think Moab or the Rubicon Trail. Also, perhaps confusingly, horsepower isn’t usually as important as gearing.

A Rockhounding Vehicle

Most rockhounds end up with a purpose-built four-wheel drive vehicle. They may start with a passenger car for rock shop trips or for paved roads to some collecting sites, but as the hobby takes hold they wind up with 4WD. Some drive crossovers and SUVs to remote off-pavement collecting sites but they risk their tires, their vehicles, and sometimes themselves. What follows is not a criticism of any vehicle a rockhound may have now, but a review of practicalities.

Four-wheel drive means differently applied power to all four wheels at the same time. Think about a vehicle making a complete circle or a turn on dry pavement. The inside wheels travel a shorter distance than the outside ones. 4WD vehicles adjust for this difference, operating all wheels with the correct power and play. Without this adjustment, a vehicle would stagger around the circle, perhaps leaving chunks of tire behind. That’s because all tires would be locked together, all turning the same rate over the different distance of the circle. Many vehicles, though, have locking differentials which force the wheels to turn together. They’re used when a vehicle threatens to bog under extremely loose or slippery conditions. More on lockers later.

What to Choose?

Every vehicle is a compromise. A stock jeep offers great maneuverability but carries fewer people and less gear than a full-size pickup. A pickup holds more gear but needs a tonneau cover, a tool box, or a camper shell to protect bed items. A camper shell in turn reduces visibility to the rear and sides. Work arounds are possible. Jeep accessories allow more gear by hanging items off the rear bumper or on top of the rig. A truck with a camper shell can have better side mirrors fitted to reduce blinds spots and a rearview camera to help with reversing.

A short wheelbase Jeep takes turns other vehicles can’t or with effort. Imagine a hard-left turn at the bottom of a steep hill. The Jeep may make that turn without backing up. A truck, on the other hand, may be forced to back up the hill to make the turn with another try. As mentioned before, larger trucks offer greater carrying capacity and a driver may wish to sacrifice some nimbleness for that virtue. Every vehicle is a compromise.

What Should a 4WD Vehicle Include?

Two-speed transfer case

All four wheel or all-wheel drive vehicles are not created equal. At a minimum, a rockhounding vehicle needs a two-speed transfer case providing what’s called high range four-wheel drive (4H) and low range four-wheel drive (4L). This drivetrain component operates off the vehicle’s transmission. The 4L setting increases torque or pulling power tremendously, keeping a vehicle going through thick mud or sand that would bog a rig operating in normal four-wheel drive or 4H.

Engage four-wheel drive only when needed, preferably, just before needed. That includes steep hills, snowy roads, deep sand, or mud. Anytime a road surface is loose or slippery. Which is often off pavement. Don’t underestimate the need for 4WD. A slight hill with wet grass defeats most 2WD vehicles. Engaging 4L means conditions have deteriorated substantially. Reduce speed to no more than fifteen to twenty-five miles an hour and let gearing do the work. A reminder. Ice defeats everything including 4WD. And some silt hills like those above Bakersfield, CA, will fill the treads of any tire, making even 4WD useless. Still, get a 4WD, exceptions or not.

Vehicles lacking a two-speed transfer case

Many crossovers and SUVs feature all-wheel drive (AWD) but lack a two-speed transfer case, the defining element of 4WD. The Honda Ridgeline, the Ford Escape, the Hyundai Tucson, the Subaru Forester and others send power to all four wheels but they cannot gear down the same way as 4WD.

Skid Plates

Skid plates cover some or all of a vehicle’s underbody. Especially important is a skid plate protecting the oil pan. These must be metal. Some vehicles have plastic plates underneath their frames for better air flow. These are not skid plates. Factory skid plates are better than none. Aftermarket companies like Hefty Fabworks manufacture 3/16” thick steel skid plates, which can armor a vehicle’s entire underbody. They are heavy, expensive, and require a lift to install. Most rockhounds can happily do with factory plates.

Tow Hooks

A vehicle needs frame mounted tow hook at front and back. These hooks permit a cable or tow strap to recover the vehicle once bogged. Without a hook there must be some other point on the frame to pull from. Consult the vehicle’s owner’s manual. A bumper or its facia will be torn off if used instead of a frame mounted hook. Lacking a tow hook at the back, a recovery point can be had using a D-ring shackle attached to a frame mounted hitch receiver. Never put a tow strap around a hitch ball. The ball may break loose and fly like a cannon ball into the window of the pulling vehicle. Never use chains. Never.

A Locking Differential (or two)

Many 4WD vehicles have a locking differential on the rear axle. Some have a locker on the front axle as well. As the name suggests, a locking differential forces both tires on an axle to move at the same speed. The lockers are engaged only when 4L no longer helps and the vehicle is at risk of getting bogged. Locked up, the vehicle will want to travel straight ahead, as there is no longer play between tires. Only the most treacherous, slippery conditions warrant engaging lockers and they must be disengaged as soon as firmer ground is reached.

Fire Extinguisher

Every vehicle needs a fire extinguisher fixed to a secure mounting bracket. Every vehicle.

Towing Package

A factory installed tow package is worth the cost, even with no towing is contemplated. A truck so fitted gets a greater capacity engine radiator and a larger transmission radiator. Possibly an oil radiator. The battery, suspension, alternator and charging system are all upgraded to handle towing’s greater demands. A truck with a tow package should run cooler under all conditions.

Batteries

Batteries die quickly from heat and off-roading, expect no more than two years from a conventional battery.

Before going off-pavement with a conventional battery, make sure the battery top shows no undue discharge. Remove any discharge with diluted baking soda and a stiff brush.

Positive and negative cable terminals must be corrosion free and secure. If not, brush and clean the inside of a wire’s terminal lug and the post. A vehicle may not start simply due to corrosion buildup. Start by removing the negative terminal. Use a proper wrench and not a pliers. Once rounded over by a bad tool, the nut securing the lug will continue to break down when taken off again.

Go slowly if the lug resists removal. Pry if necessary but do not break the battery’s plastic top. Use a thin piece of wood on top of the battery to pry down on rather than the top of the battery itself. After cleaning the inside of the lug, clean or scrape the entire battery post. Make bright and shiny. Do not scrape so much that you distort the shape of the post, making the connection to the lug forever less certain.

Add distilled water to low battery cells. A turkey baster helps as well as a small flashlight.

Replace a battery cable if corrosion extends well into the wire, a job for a mechanic.

A battery must fit its battery tray exactly and be extremely secure. Check it. Never buy a battery that cannot be mounted correctly. A battery mustn’t thrash about the engine compartment.

Many off-roader’s favor spiral wound absorbed glass mat batteries or AGMs. Optima makes them as well as others. AGMS are made in a radically different way than a conventional battery. AGMs are sealed and require no maintenance. No filling, no leaking, no corrosion build-up. Upgrade to an AGM once an old battery fails.

Learn to jump start a vehicle and bring heavy duty jumper cables. Black goes to ground on the vehicle being jumped. Locate a good grounding point on the frame or find the vehicle’s approved connecting point. A vehicle won’t start without a solid connection for black.

Some vehicles go into an anti-theft mode when their battery dies, this may prevent jump starting without following a certain procedure. Check the owner’s manual. Replacing the battery or removing the cables will impact a vehicle’s electronics.

A spare battery or a handheld portable car jumper is mandatory when traveling solo. Or bring a lithium-ion smart battery like the kinds Goal Zero, Midland, or Suaoki produces. These can charge a dead battery as well as a rockhound’s electronics. Those smart batteries charge, not jump.

Automatic Transmission or Manual?

Most off-roaders favor manual shifting. Manual shifting offers better flexibility over changing conditions than an automatic. Stick shift vehicles get better mileage. It’s easier for recovery services to tow manual transmission vehicles. Automatics, though, are easier to drive. If a driver becomes incapacitated, it’s important that any person in the party can drive back to pavement. Every driver can manage an automatic. But many people don’t know how to drive a stick.

What is High Clearance?

Rock clubs will advise or require a high clearance vehicle on certain field trips. But what does high clearance mean?

A vehicle’s lowest point is usually measured at the rear differential or what off-roaders call the pumpkin. The distance from the bottom of the rear diff to the ground is the clearance. A base Jeep, the Wrangler Sport edition, has 8.4” of ground clearance. A Subaru Outback has 8.7” and a base Ford 150 has 8.8”. These are minimums for rockhounding vehicles.

Larger tires and a lift kit increase clearance and void any vehicle warranty unless modifications are factory approved. They pose other problems as well. Unless fording creeks, increasing a vehicle’s height with a lift kit or tires does little if the rear differential remains at or about the same height.

Tough Talk on Tires

The National Park Service, in discussing Death Valley driving, puts the problem well, “Flat tires are a common problem for backcountry visitors due to rough road conditions or from having unsuitable tires. Make sure your vehicle is equipped with ‘off-road’ tires rather than highway or street tires. Carry at least one inflated spare tire (preferably two), a can of fix-a-flat or tire plug kit, a 12-volt air-compressor, a lug wrench, and be sure all parts of your jack are on hand. Know how to use your equipment before you head out.”

The only useful off-road tires are light truck tires, designated on the sidewall as “LT.” These tires are much thicker than passenger tires and have stronger sidewall construction. Using obsolete but familiar terminology, a passenger tire may have four plies, an LT tire six to ten. It doesn’t matter what the rugged sounding name a tire may have, only the designation LT counts. Within the world of LT tires is a huge selection. But, first, recognize “P” tires and avoid them.

Mark of The Beast

Some new 4WD pickups come with passenger tires. Reject them when buying a vehicle or get credit for LT tires. Most Crossovers or SUVs cannot be fitted with LT tires. Reconsider the vehicle purchase. No vehicle with passenger tires should leave pavement unless driving well graded, rock-free roads. Subaru rally vehicles on TV do not represent how their passenger cars are built.

Any driver using passenger tires on sketchy roads should anticipate flats and have a plan to recover from them. Do not count on assistance, even on a club outing. Members coming a long distance for a special outing may be unwilling to cancel their day ahead by helping you out. Don’t blame them, blame you.

A donut spare or a temporary tire must be substituted for a full-size spare before going off-road. Many rockhounds carry two full size spares.

If a small leak is discovered, take the easiest approach to recovery first.

A can of Fix-a-Flat for large tires should be carried in any vehicle. Once Fix-a-Flat has been used, a decent size air compressor should fill the tire back to its normal operating pressure after a few miles of travel. (A compressor also helps with airing down and airing up tires in extremely sandy conditions.) In case of a flat, any rockhound with only one spare or those making a Fix-a-Flat repair must immediately return to pavement. Tire shops don’t like Fix-a-Flat but that is their problem.

Quick Note on Air Compressors

VIAIR and others make excellent air compressors for off-road use. Any compressor must run off the vehicle’s battery. Air compressors using a cigarette lighter adaptor are totally unacceptable. They are painfully slow and will burn out or overheat long before they can air up four off-road tires. Even when filling a single tire, small compressors will overheat and shut down, refusing to start again until cool.

Power must be drawn from the battery with the cables provided and the vehicle must be running the entire time of airing up. If not, the battery will drain immediately and die. The sliding hose couplers VIAIR uses demands great hand strength, look at other options if you have any disability. Or get a teenager in your group to connect the hoses for you. Expect to pay at least $200. Someone owning a quality air compressor and good LT tires won’t often need their expensive purchase. But someone in their group will. Count on it.

Back to Tires

Off-road tires and wheels are big and heavy. A complete tire and rim may be a yard wide and weigh 40 pounds. No rockhound should drive off-pavement by themselves without being able to change a tire on their own.

Sidewall flats are the worst. Tire dealers never fix a sidewall flat. Instead, they replace the entire tire. Tire repair kits exist for field repairs but not for sidewall flats. Repair as best as one can. Driving on a flat gets one further down the road but risks damage to the wheel. Driving on a flat is warranted, though, when getting a vehicle to a level spot for changing a tire.  Drive slow. Better to do this than attempt a tire change on badly uneven ground that might cause the vehicle to slide off a jack. And on to you.

Avoid hazards one controls. Keep from cactus, of course, but creosote branches broken at the right angle can puncture quality off-road tires. Stay fully on the route being driven. Avoid camping spots with fire rings where scrap wood may have been burned. Scrap wood leaves nails that are never picked up. A ten year old camp site like that will have nails everywhere. And stay on road in old mining districts, with hidden iron trash over every foot of ground.

Reduce speed. A rocky road at 15 MPH may not puncture tires but it may easily do so at 30 MPH. Some roads are so rocky the driver may not realize a flat has occurred for some time. Unfortunately, too many trip leaders drive too fast, leading group members racing to keep up with break downs resulting. Other than getting the leader to slow down, be prepared with a vehicle that can take an extra pounding from time to time.

AWD vehicles like Subarus have a special tire problem. All four tires must have equal tread wear or the AWD system will not work correctly or will break down. If a non-repairable flat is suffered when the vehicle is under warranty, it may be necessary to replace all four tires. If out of warranty, a used tire might be bought or a new tire shaved down to the right depth. Any of these steps means delaying or cancelling an adventure. Especially when broken down in a rural community without a tire store.

Many vehicles carry spares underneath their rigs, especially SUVs. A driver must know how to release them while on their back in mud or rain. A better solution is a swing-out carrier above the back bumper. Or a spare stowed inside the vehicle. This writer’s truck came with a spare mounted underneath. That is now the second spare. The first spare is carried in the truck bed, easily rolled out.

Take advice from a tire dealer familiar with off-roading. Develop a relation with this expert and their store. They will advise on tread depth and design, mileage expected, road noise, and a dozen other details.

Jacks

–The Hi Lift Jack

The Hi Lift Jack is everywhere in the Jeep Community but of limited use for most vehicles. It’s mainly used to get a rig going that has high centered, one stuck on a rock or a ledge that puts a wheel or two off the ground. This jack utilizes lifting points close to the frame which most rigs do not have. It needs a base plate when in sand or mud. A Hi Lift can injure if used improperly. Before practicing, ask someone who knows the jack for one- on-one instructions. The Hi Lift isn’t meant for changing tires but if one does, chock the wheels and use jack stands.

–Off Highway Vehicle Jack

Pro Eagle sells off-pavement jacks that operate like conventional floor jacks. These are for high clearance vehicles, though not necessarily lifted. Check underbody height for compatibility before buying. These jacks may weigh fifty pounds. Despite weight, bulk, and cost, they make a good investment because they work in sand and can go under a vehicle to hit a variety of lifting points. There is a joy in using a jack that is dead simple, needs little instruction, and can be counted to work on every time. Again, chock at least one opposite wheel.

–The Bushranger X-Jack

Far lighter than any jack is this Bushranger product. It is a balloon like device that lifts a vehicle for chores like changing a tire. Jack stands must be placed before a spare is installed but that’s good practice with any repair. The X-Jack weighs less than twenty pounds and is inflated by the vehicle’s exhaust pipe or by the air compressor every rockhound must have in their rig. Many inexpensive copies exist. Avoid them.

Self-recovery Techniques

Solo drivers must have self-recovery plans. A long-handled shovel is mandatory as well as a tow strap should another vehicle come along. Maxtrax recovery boards are excellent. They permit a 4WD vehicle with off-road tires to get moving by first driving onto the boards, enabling momentum which is the key to getting unstuck. You’ll have to shovel first, however, when in sand or mud to place the boards. Recovery boards are far better than sticks or rocks shoved under a tire to give it traction.

A Last Note

A liberating force of a 4WD with heavy duty tires is to splash into pullouts one would never attempt with a passenger car. Every rockhound sees fascinating things on paved roads at 50 MPH, the question is, where can one pull over? Too many things are passed by because there is no where to turn out. After having a passenger car, it is a delight to bounce into pullouts that are within walking distance of a find. The world opens up as you confidently go off the road despite a drop a good drop in grade or surface. Try it.

Follow me on Instagram: tgfarley

https://www.instagram.com/tgfarley/

A Mystery Metal, The Whites’ GMT and the Falcon MD-20

Yesterday I went out to Lathrop Wells in Nye County looking for placer gold in featureless alluvium, possibly 240 deep where I was. I had the audio on my metal detector turned way down to save on battery life. I wasn’t listening for gold nuggets or gold in quartz that day, instead, I was reading the display on my Whites’ black sand tracker feature. It gives a numerical reading on any ground the coil is moving over. I sample when I see it go above 45, unfortunately, it only hit 42 once.

But one sandstone rock with black streaks blasted out despite the volume on the speaker being turned down. Well, I thought, that’s interesting. Aside from the possibility of gold, I wasn’t aware of any other metallic ore in this ocean of alluvium. No mining district here or any past mining activity. The signal sounded like the hot rocks I encountered everywhere in the the canyons of the forks of the American River. You get what sounds like a good signal and then you listen as the GMT cancels the signal out. I should explain.

A decent gold signal is a strong, low, mellow tone that happens each time the search coil passes over a rock. The signal remains no matter how many times the search coil goes over the target. What usually happens with a bad rock, often with an iron component, is that a signal is heard initially but that signal disappears after several passes. With each sweep the GMT is logging information to determine if a rock is ferrous or not. If so, the signal weakens and then goes away. This is called cancelling out. This rock did not cancel out. That’s what you look for with gold. Most non-metallic rocks are neutral and the GMT also passes them by without raising any signal.

The signal, however, was weak and wavy. Not good. You want to hear a steady signal, nice and low. You’ll rarely hear this. The Whites also has a probability of iron meter. It was reading at nearly 100%. Okay, I thought, this is coming home with me to figure out later. When I broke it open at home it revealed a dark material like that which it showed from the outside, hardness about three. Not attracted to a magnet, not even my super magnet. No U, no UV. Dull, off-white streak on a black streak plate. Metallic luster when freshly broken, annealed appearance in some spots with fresh breaks. Crushed and panned a piece, nothing unusual, no free gold at the macro or micro level.

To get the ID process going I mailed off a chip today by regular US mail to Kerry Day. He charges less than ten dollars for a seasoned opinion based his experience and the results produced by his electron scanning microscope and its supporting software.  I’ve written about his service many times before. I taped a small chip to my business card, put it in a normal envelope and the charge for mailing was less than $2.50.  Make sure your sample fits into a No 10 first class envelope, anything bigger might be considered a package and then mailing rates go up enormously.

My Falcon MD-20 handheld metal detector indicated that the material was non-ferrous, despite what my Whites said. Ferrous material produces a noise when an object goes away from the Falcon’s probe. Non-ferrous produces a signal as you move material toward the probe. This material only produced a signal going toward the probe, however, there are cases where a material is so strong that it may overwhelm the device and make it impossible to determine which is which. There were also some tiny gold colored spots arranged in lines here and there in the black material.  On seeing gold coloring, always assume mica or pyrite. The nice thing about the Falcon handheld and the GMT is they do not react to pyrite. Never. I have lumps of pure pyrite and both devices stay silent when moved over that nonsensical material. Pyrite is an iron associate but too weakly so. Yet the rock continued sounding off. I suspect that it was is not those gold colored specks making the noise but the black material.

Unable to resolve the difference between the two metal detectors, I gathered up the rock pieces and went back to my truck and the GMT.  I ran the coil over the rocks again. Sure enough, I hadn’t read the meter right in the field. This time the meter did not go above the halfway line, indicating something less than ferrous. The signal remained weak but still would not cancel out. Now, I just wanted to figure out what the material was, never mind that it wouldn’t be worth anything.

After further research I discovered that there are three long abandoned copper mines in the hills that drain to the wash I had been in. I still don’t know what that black material is but I am now convinced that I have a rock with copper. Not worth anything but a nice find. Those exploratory diggings are now unclaimed and the ground is on open BLM managed land. A little close to the Nevada Test Site boundary but at least a mile away. I may go exploring there to look for copper mineral specimens. Here’s a link to one mine listed at the the MRDS if you want to go:

Lucky Claim:

https://mrdata.usgs.gov/mrds/show-mrds.php?dep_id=10046589

Materials Type of material
Malachite Ore
Hematite Gangue

Fractured quartzsite with slight banding

Lathrop Wells Collecting from Thomas Farley on Vimeo.

Tuff, Explosion Tuff, and a Cat

Got to get out the door quick to hound some more ground. A few words here on tuff since I am investigating a tuff formation outside of Las Vegas. See previous posts.

Tuff are rocks formed from solidified or lithified volcanic ash and rock fragments thrown out of a vent. They can be all colors and densities but a common feature are clasts, rock fragments within the tuff. Not all tuff contains clasts but this is very common.

UPDATE: November 11, 2019. Made a better video than the previous. Retains cat content.

Volcanic Tuff and Cat from Thomas Farley on Vimeo.

Most of my tuff reference specimens come from here:

https://geologicalspecimensupply.com/?step=contact_information

I might have found an example of explosion tuff. This is where rocks settled onto the ash, rather than being embedded in it. Need to collect more of that, break some of it open, look for other things while I am out in the field, and on and on. . .

Another look at this possible explosion tuff and a still photo of what I am calling “The Shark”. A single, angular clast sticking out of tuff from the same area. Looks like basalt to me. Is this explosion tuff?

Explosion Tuff? from Thomas Farley on Vimeo.

The Shark

—-

Follow me on Instagram: tgfarley

https://www.instagram.com/tgfarley/



Mystery Crystals Revealed as a Mystery

Results

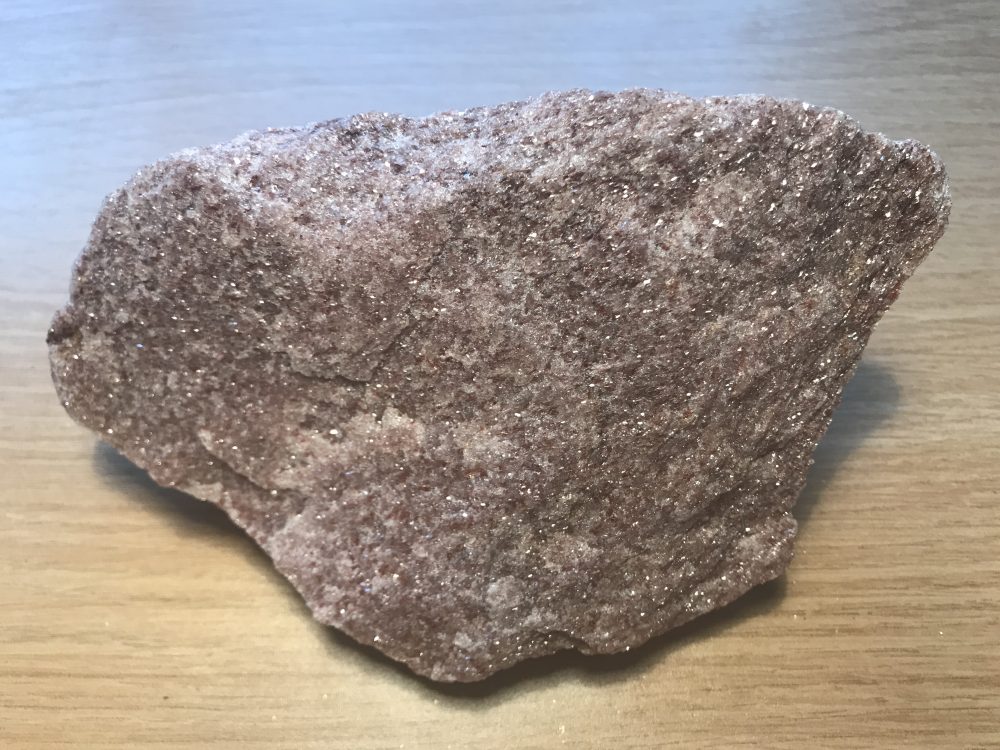

The results are in on those small crystals I found in tuff near Jean, Nevada. Kerry Day says they are a mystery mineral, possibly orthoclase. That’s a feldspar member, a group of rock building minerals. Although the geologic map for the area lists sanidine as being present, geologists aren’t all skilled mineralogists and sometimes small mistakes occur. Sanidine is another feldspar mineral, closely related to orthoclase.

Feldspar imparts a pink color to many granitic rocks. Feldspar minerals aren’t much collected unless they display good crystal form or come from a rare area. Like the anorthoclase found at the Mt. Erebus Volcano in Antartica.

Mindat.org says orthoclase is “a alkali feldspar intermediate between low sanidine and high albite.” Hmm. I’ll have to read up on that but in the meantime have asked Wendi at Minerals Unlimited to send me specimens of those two. I’ll put them under my microscope to compare them to what I have. Positively identifying any of these minerals by sight,  however, is really impossible.

Minerals.net has an excellent article on anorthoclase which says that distinguishing between albite, sanidine, orthoclase, and microcline requires x- ray analysis, probably X-ray diffraction. The usual visual and physical tools for identification: determining luster, hardness, cleavage or fracture, and so on, don’t matter much when minerals are quite alike. Rather, something like the percentage of potassium in a specimen may make the difference.. And you’re not going to determine that with with a field guide or anything else online. Test.

This is a labeled spectra of the crystal sample I sent Kerry Day. His conclusion:

“Mystery mineral = Not Sanidine, insufficient K. Probably Anorthoclase. (Now orthoclase, ed.) The spectrum does not fit Chabazite.”

With that comes his qualifications:

“That spectrum was created with a Cambridge S100 SEM, a XR-100-CR pin diode detector and DTSA software. X-ray counts are on the vertical axis and X-ray voltage is on the horizontal axis. For various reasons peak heights are not directly comparable.

The accelerating voltage was 25 KeV. This setting exaggerates the higher voltage peaks. Detector efficiency peaks at Ca, thus, all Ca peaks are greatly exaggerated. NA IS VERY POORLY DETECTED BY MY HARDWARE. [NA is sodium, ed. note]

Some elements create more than one peak. All elements have been labeled.

My X-ray detector cannot detect Li, Be, B, C, O, N or F. [the lighter elements, ed. note]

Uncoated specimens charge up under the beam and generate false peaks such as Al (1.49), Si (1.74), Cl (2.61) and Ni (7.47). These elements are coming from the inside of my SEM chamber. Surrounding minerals also contribute. Any element I believe to be extraneous I did not label.”

So, what do we have?

One Method For Further Testing

Calculating a mineral’s identity by its geochemical composition is a good step when the usual ID methods fail. Kerry Day uses a method called qualitative EDS analysis. A qualitative test differs from a quantitative test in that it may be less precise but it is far, far less expensive. Quantitative testing is usually only needed when publishing results in the sciences or when working in an industry with critical concerns. NASA needs quantitative, you probably don’t.

Kerry Day uses his own Scanning Electron Microscope or SEM to perform mineral identification. He writes, “When high energy electrons from a scanning Electron Microscope (SEM) bombard a mineral grain, they generate X-rays of voltages specific to the atoms being bombarded. An Energy Dispersive Spectrometer (EDS) then detects these X-rays and displays them in graph form on a computer. Interpretation of the raw graph is called Qualitative EDS analysis.”

An element-based formula can express a mineral’s chemical makeup. Like this for turquoise:

CuAl₆(PO₄)₄(OH)₈ • 4H₂O

Cu is copper, Al is aluminum, PO4 is phosphate, OH is hydroxide, and H2O is water. The subscript values indicate their proportions.

Day considers the elements reported in a sample. Relying on years of experience, he then tries to match these elements to a mineral formula. His equipment does not test for every element nor do other kinds of analytical tests but the major elements present are often enough to identify a mineral in this manner.

Day charges $8.00 for each spectrum conducted, with the peaks of the spectra indicating which element is present and the height of the peak roughly approximating its proportional abundance. His report generates a labeled-spectra which is e-mailed and which you can see above. Kerry says, “A sand-sized grain or a scraping in a gelatin capsule or taped to paper is sufficient for the this analysis.”

You might pay more for postage than the test itself if you send your material as a package. Fit your sample instead into a No. 10 envelope. The USPS should charge less than $2.50 for a first class envelope to Canada. Although Day accepts cash tucked into a sample’s envelope, you can pay for testing through his Etsy store. That will prevent customs or your shipping company from delaying your sample should they have a problem transporting money.

His website:

http://kaygeedeeminerals.com/sem-eds_service

His Etsy store, under the name KGDOLMC, is here:

https://www.etsy.com/ca/shop/KGDOLMC?

His selection of minerals and rocks, by the way, is wonderful. Inquire if you don’t see something you are searching for. I have bought many things from him. Back to testing.

This testing is primarily for minerals, not elements. For example, an EDS analysis of colored chips from a petrified wood sample will probably reveal the mineral quartz, the host mineral, and not the trace elements coloring the chips. In the case of pet wood, Bob Jones says these colors could come from vanadium, chromium, manganese, iron, cobalt, and many more. Any of the so-called transition metals. Again, these are elements, not minerals and Day’s equipment may not pick them up. An EDS analysis may disappoint when a minerals are expected and instead undetectable trace elements produce an inconclusive report.

If known, you might include in your correspondence with Day the minerals documented to exist in your collecting area. Mindat.org might provide this for a well noted area or perhaps a list might be had from the applicable geologic quad.

What Now With My Mystery Crystals?

I’m wrapping up my efforts with the samples I collected. I’ve noted their location in a Word doc and have included portions of the Jean Quad, the geologic map of the area. Along with the test results Kerry Day provided. It’s not everyday that you find crystals that come in squares, rectangles, and sometime arrowhead shapes. It’s been fun. My mineral friend Rolph in St. David Arizona, says orthoclase is common there and brings about a sparkling character to many areas.

I’ll now store away my samples with this paperwork and go on to finding other things. Perhaps I’ll make this file available online in case the one or two feldspar specialists in the world ever decide they want to look up this occurrence. Maybe some student twenty years from now working on their Masters’ thesis. It could happen! 🙂

—-

Follow me on Instagram: tgfarley

https://www.instagram.com/tgfarley/
